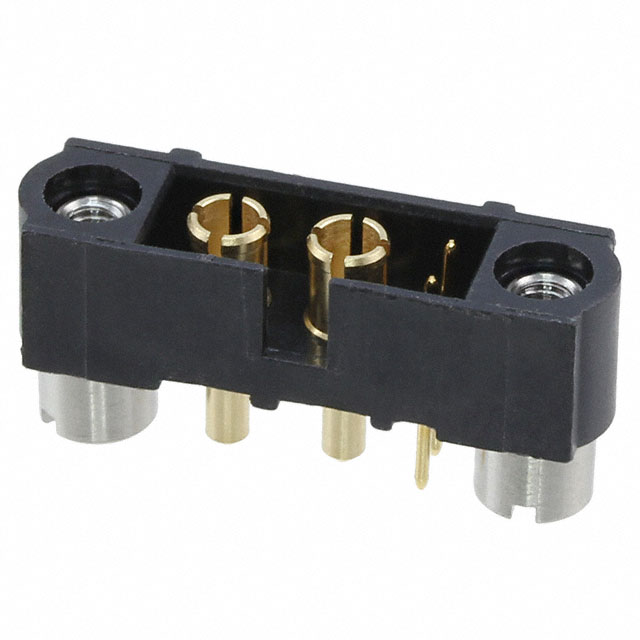

M80-5T10205M2-02-331-00-000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5T10205M2-02-331-00-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-5T10205M2-02-331-00-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-5T10205M2-02-331-00-000 |
|---|---|
| Manufacturer | Harwin |
| Description | MIX-TEK M HORIZ 2-2POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $7.072 | $6.384 | $5.543 | $5.084 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-5T10205M2-02-331-00-000 | Manufacturer | Harwin |
|---|---|---|---|
| Description | MIX-TEK M HORIZ 2-2POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7032 pcs | Data sheet | M80, M83 Series Spec SheetDatamate CatalogM80-5T10205M2-02-331-00-000 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Datamate Mix-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-2925 M80-5T10205M2-02-331-00-000-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 (2 + 2 Power) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.3mm, 9.75mm | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole 4 (2 + 2 Power) position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
