M80-5122042
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5122042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-5122042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote

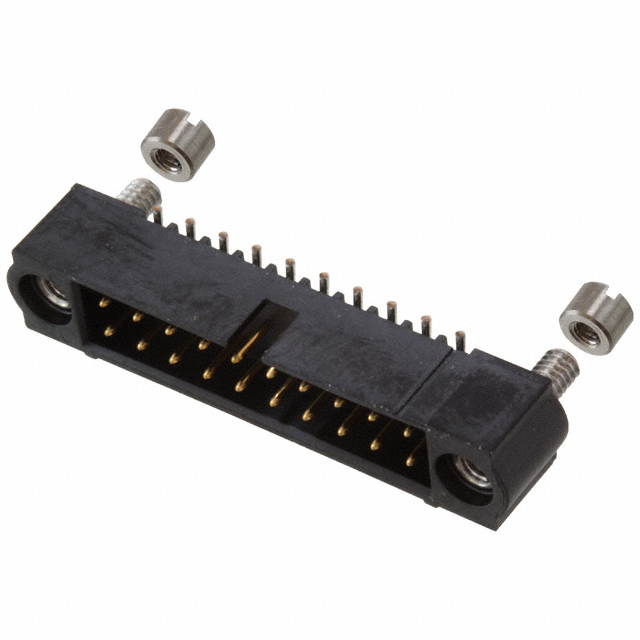

| Part Number | M80-5122042 |
|---|---|
| Manufacturer | Harwin |
| Description | 2X10POS MALE VERTICAL BOARD SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 104 pcs | 504 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $6.045 | $5.497 | $4.672 | $3.985 | $3.655 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-5122042 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2X10POS MALE VERTICAL BOARD SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9049 pcs | Data sheet | M80, M83 Series Spec SheetDatamate CatalogM80-512yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 800V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-1916 M80-5S12042M2 M80-5S12042M2-ND M805122042 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.234" (5.95mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware |
| Fastening Type | Threaded | Detailed Description | Connector Header Surface Mount 20 position 0.079" (2.00mm) |
| Current Rating | 2.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
