M80-5101005

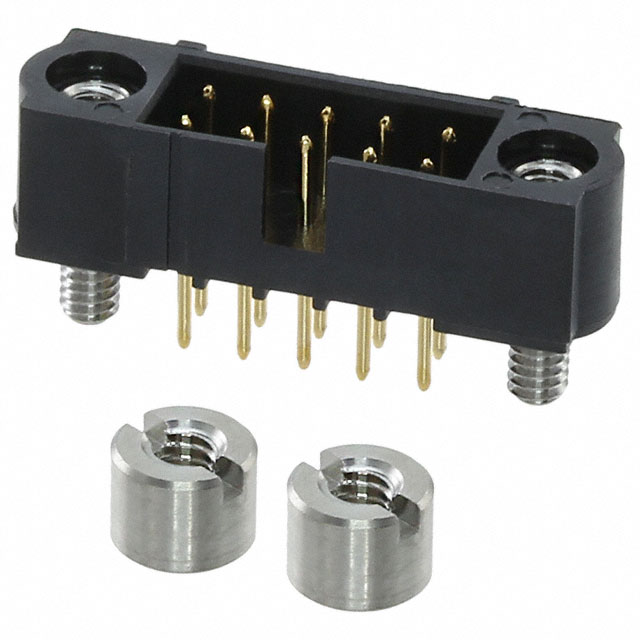

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5101005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-5101005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-5101005 |
|---|---|
| Manufacturer | Harwin |
| Description | 5+5 WAY M V BM 3MM TAIL W/JS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 13 pcs | 104 pcs | 507 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $4.338 | $3.945 | $3.354 | $2.86 | $2.624 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-5101005 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 5+5 WAY M V BM 3MM TAIL W/JS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11653 pcs | Data sheet | M80, M83 Series Spec SheetM80-510yyyy DrawingDatamate Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 800V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-3551 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware | Fastening Type | Threaded |
| Detailed Description | Connector Header Through Hole 10 position 0.079" (2.00mm) | Current Rating | 2.2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 29.5µin (0.75µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
