Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > M80-5000000M5-02-PM3-00-000

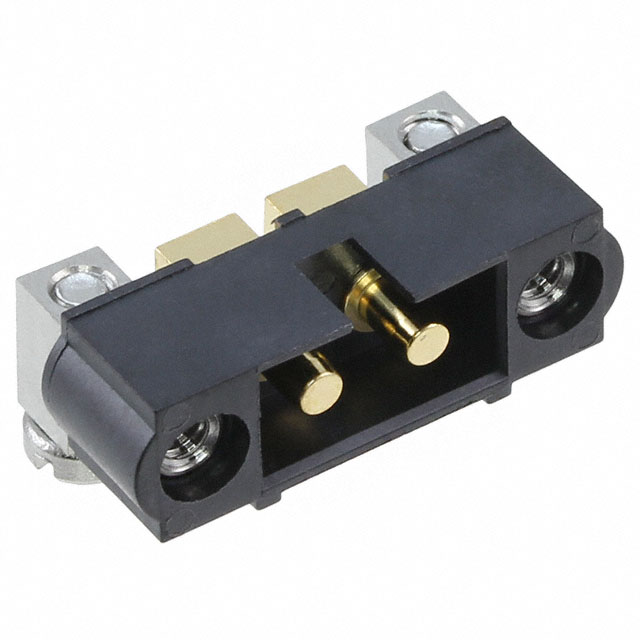

M80-5000000M5-02-PM3-00-000

M80-5000000M5-02-PM3-00-000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5000000M5-02-PM3-00-000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number M80-5000000M5-02-PM3-00-000
Manufacturer Harwin
Description CONN HDR MIX-TEK 2POS
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 4222 pcs
Reference Price
(In US Dollars)		1 pcs14 pcs112 pcs
$11.744$10.601$9.205

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$11.744

Product parameter

Part Number M80-5000000M5-02-PM3-00-000 Manufacturer Harwin
Description CONN HDR MIX-TEK 2POS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4222 pcs Data sheet M80, M83 Series Spec SheetM80-5000000M5-yy-yyy-00-000 DrawingDatamate Catalog
Category Connectors, Interconnects Voltage Rating 800V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Datamate Mix-Tek
Row Spacing - Mating - Pitch - Mating 0.157" (4.00mm)
Packaging Tube Overall Contact Length -
Other Names 952-2908
M80-5000000M5-02-PM3-00-000-ND		 Operating Temperature -55°C ~ 125°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 2 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 5 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Insulation Height 0.218" (5.55mm) Insulation Color Black
Ingress Protection - Features Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Fastening Type Threaded Detailed Description Connector Header Through Hole, Right Angle 2 position 0.157" (4.00mm)
Current Rating 40A Contact Type Male Pin, Power
Contact Shape Circular Contact Material Copper Alloy
Contact Length - Post 0.138" (3.50mm) Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post - Contact Finish - Mating Gold
Connector Type Header Applications -
