M80-4C11205F1-04-325-00-000

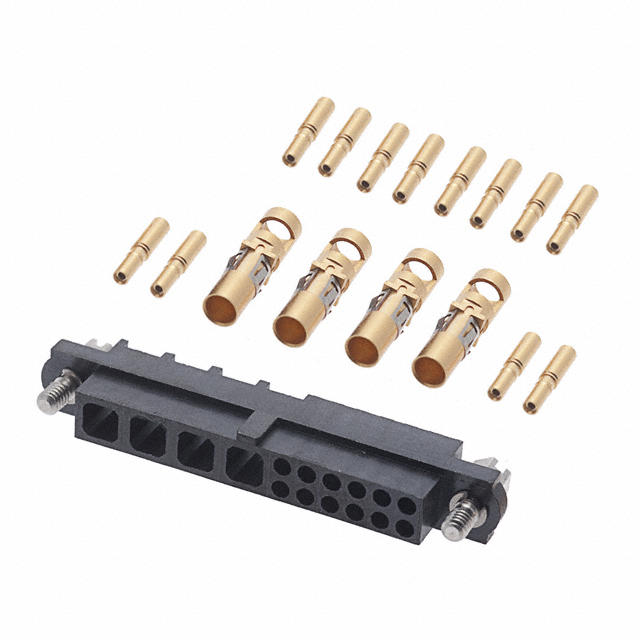

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-4C11205F1-04-325-00-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-4C11205F1-04-325-00-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-4C11205F1-04-325-00-000 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT MIX-TEK 16POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.786 | $6.126 | $5.87 | $5.503 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.319 | $5.026 | $4.879 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-4C11205F1-04-325-00-000 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT MIX-TEK 16POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6174 pcs | Data sheet | M80-4C11205F1-04-325-00-000 DrawingDatamate Catalog |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 24-28 AWG | Series | Datamate Mix-Tek |
| Row Spacing | - | Pitch | - |
| Packaging | Bulk | Other Names | 952-1264 M804C11205F10432500000 |
| Number of Rows | 2 | Number of Positions | 16 (12 + 4 Power) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Jackscrews | Fastening Type | Screw Lock |
| Detailed Description | 16 (12 + 4 Power) Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 11.8µin (0.30µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | Black |
| Cable Termination | Crimp |
