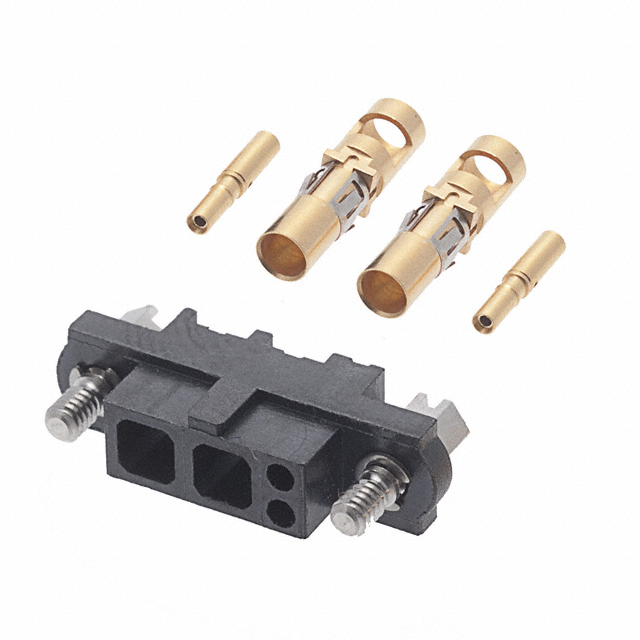

M80-4C10205F1-02-325-00-000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-4C10205F1-02-325-00-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-4C10205F1-02-325-00-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-4C10205F1-02-325-00-000 |
|---|---|
| Manufacturer | Harwin Inc. |
| Description | CONN RCPT MIX-TEK 4POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $4.775 | $4.342 | $4.234 | $3.908 | $3.691 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $3.365 | $3.148 | $2.888 | $2.823 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-4C10205F1-02-325-00-000 | Manufacturer | Harwin Inc. |
|---|---|---|---|
| Description | CONN RCPT MIX-TEK 4POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11226 pcs | Data sheet | M80-4C1xx05f1-(02,04)-325-00-000M80-4C10205F1-02-325-00-000 Drawing |
| Category | Connectors, Interconnects | Voltage | 24-28 AWG |
| Stacking Direction | Female Socket | Series | Datamate Mix-Tek |
| RoHS Status | Bulk | Pitch - Mating | Discrete |
| Other Names | 952-1244 M804C10205F10232500000 |
Number of Rows | 2 |
| Number of Positions | 4 (2 + 2 Power) | Number of Lines | Crimp |
| Number of Conductors | 0.079" (2.00mm) | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Manufacturer Part Number | M80-4C10205F1-02-325-00-000 | Features | Jackscrews |
| Expanded Description | 4 (2 + 2 Power) Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG | Description | CONN RCPT MIX-TEK 4POS GOLD |
| Current - Max/Contact | - | Contact Finish Thickness | Gold |
| Connector Type | Receptacle | Color | Black |
| Cable Diameter | 12µin (0.30µm) | Adapter Type | 0.079" (2.00mm) |
