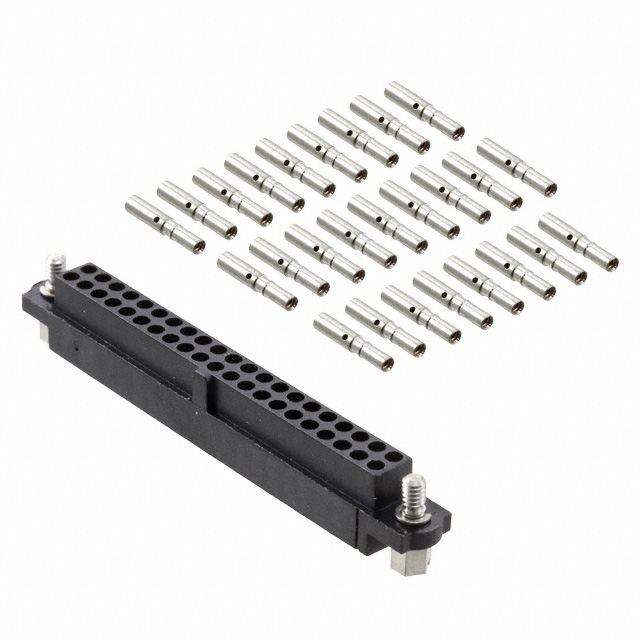

M80-4602642
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-4602642 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-4602642 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-4602642 |
|---|---|
| Manufacturer | Harwin |
| Description | DIL FEMALE LARGE BORE CRIMP CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.509 | $6.779 | $6.495 | $6.089 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.886 | $5.561 | $5.399 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-4602642 | Manufacturer | Harwin |
|---|---|---|---|
| Description | DIL FEMALE LARGE BORE CRIMP CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5700 pcs | Data sheet | M80, M83 Series Spec SheetM80-460yyyy DrawingDatamate Catalog |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 22 AWG | Series | Datamate J-Tek |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 952-2049 M80-4D12642F1 M80-4D12642F1-ND M804602642 |
| Number of Rows | 2 | Number of Positions | 26 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Jackscrews, Polarizing Key | Fastening Type | - |
| Detailed Description | 26 Position Rectangular Receptacle Connector Crimp Gold 22 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 11.8µin (0.30µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | Black |
| Cable Termination | Crimp |
