Home > Products > Connectors, Interconnects > Rectangular Connectors - Contacts > M80-0400005

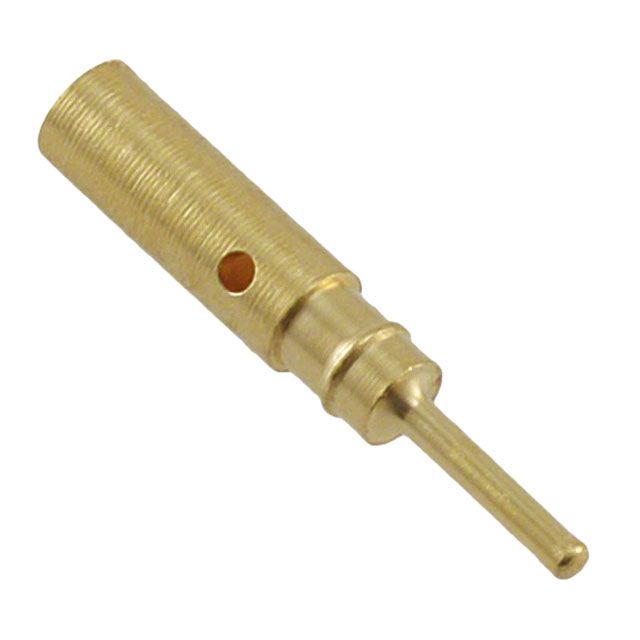

M80-0400005

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-0400005 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M80-0400005
Manufacturer	Harwin
Description	MALE CRIMP DATAMATE LARGE BORE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 160149 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs	50 pcs
	$0.273	$0.228	$0.205	$0.182	$0.164
	$0.159	$0.155	$0.15	$0.136

Product parameter
Data sheet

Product parameter

Part Number	M80-0400005	Manufacturer	Harwin
Description	MALE CRIMP DATAMATE LARGE BORE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	160149 pcs	Data sheet	Datamate Catalog M80-04000xx Drawing
Category	Connectors, Interconnects	Wire Gauge	22 AWG
Type	-	Series	Datamate L-Tek
Pin or Socket	Pin	Packaging	Bulk
Other Names	952-2195 M800400005	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Pin Contact Gold 22 AWG Crimp	Contact Termination	Crimp
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
