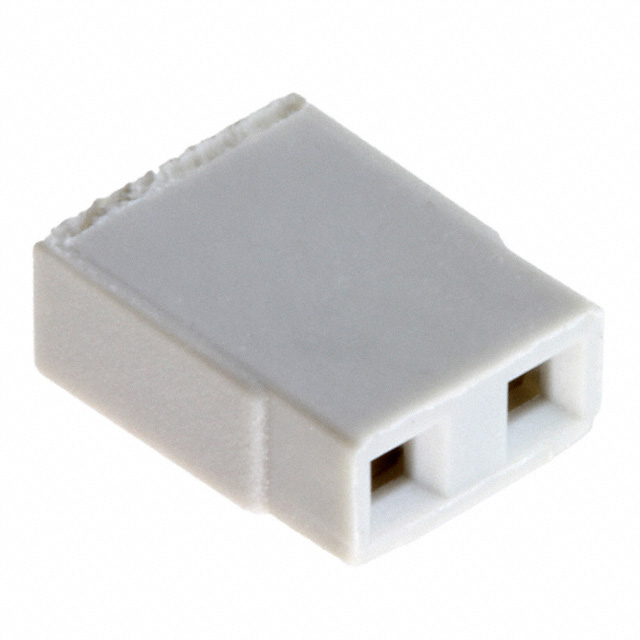

M7565-05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M7565-05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M7565-05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M7565-05 |
|---|---|
| Manufacturer | Harwin |
| Description | OPEN TOP JUMPER SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.103 | $0.099 | $0.085 | $0.072 | $0.069 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.062 | $0.059 | $0.05 | $0.045 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M7565-05 | Manufacturer | Harwin |
|---|---|---|---|
| Description | OPEN TOP JUMPER SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 429748 pcs | Data sheet | M7565-71(-xx)M20 Series Catalog |
| Category | Connectors, Interconnects | Type | Open Top |
| Series | M75 | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 952-2200 M756505 |
| Number of Positions or Pins (Grid) | 2 (1 x 2) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.248" (6.30mm) | Gender | Female Sockets |
| Detailed Description | 2 (1 x 2) Position Shunt Connector Gray Open Top 0.100" (2.54mm) Gold | Contact Finish Thickness | 5.11µin (0.130µm) |
| Contact Finish | Gold | Color | Gray |
