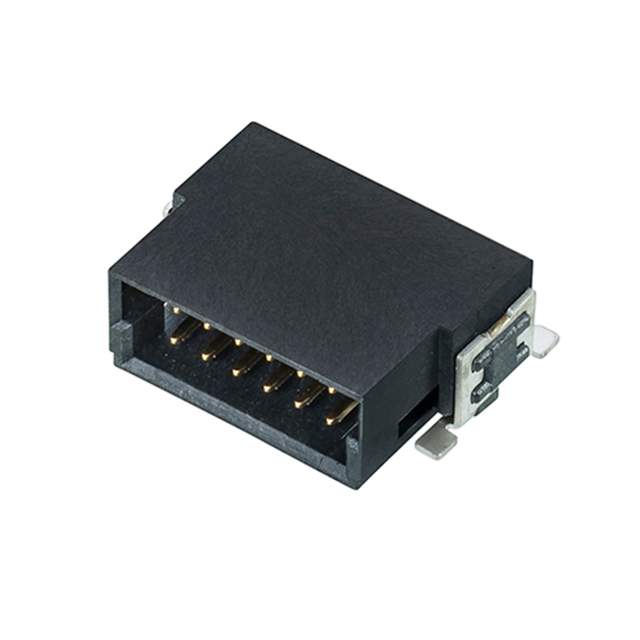

M55-7101242R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M55-7101242R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M55-7101242R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M55-7101242R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 1.27MM SMD R/A 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.496 | $0.436 | $0.376 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M55-7101242R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM SMD R/A 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84037 pcs | Data sheet | M55 Series Spec SheetArcher Kontrol New Product IntroM55-710xx42R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Archer Kontrol |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Original-Reel® | Overall Contact Length | - |
| Other Names | 952-3891-6 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount, Right Angle 12 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
