M52-5152445

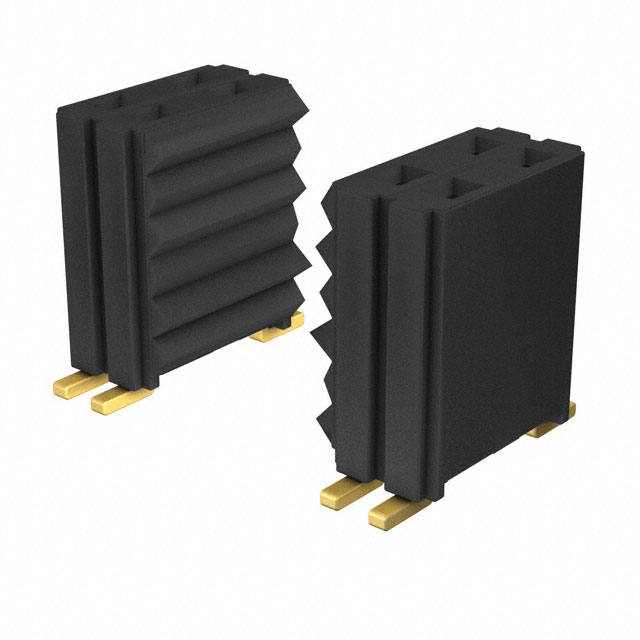

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M52-5152445 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M52-5152445 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M52-5152445 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 48POS SMD 1.27MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M52-5152445 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 48POS SMD 1.27MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4324 pcs | Data sheet | M52-515xx45 DrawingArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Archer M52 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 48 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 8.5mm, 9.77mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.224" (5.69mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 48 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Medical, Telecommunications |
