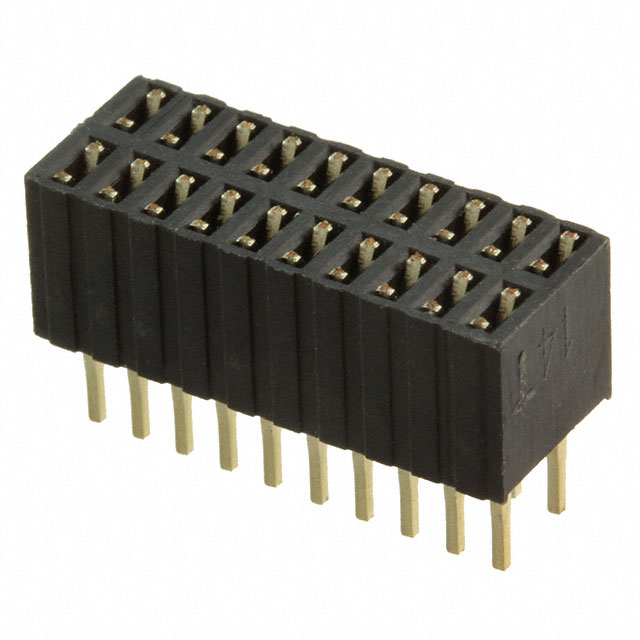

M52-5101045
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M52-5101045 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M52-5101045 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M52-5101045 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 20POS T/H 1.27MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 43 pcs | 129 pcs | ||
|---|---|---|---|---|---|
| $0.841 | $0.715 | $0.653 | |||
| 516 pcs | 1032 pcs | 5031 pcs | |||
| $0.544 | $0.466 | $0.413 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M52-5101045 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 20POS T/H 1.27MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75246 pcs | Data sheet | M50,M52 Series Spec SheetM52-510xx45 DrawingArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Archer M52 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 952-3075 M52-5101045-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.181" (4.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Forked |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Medical, Telecommunications |
