M52-5010345

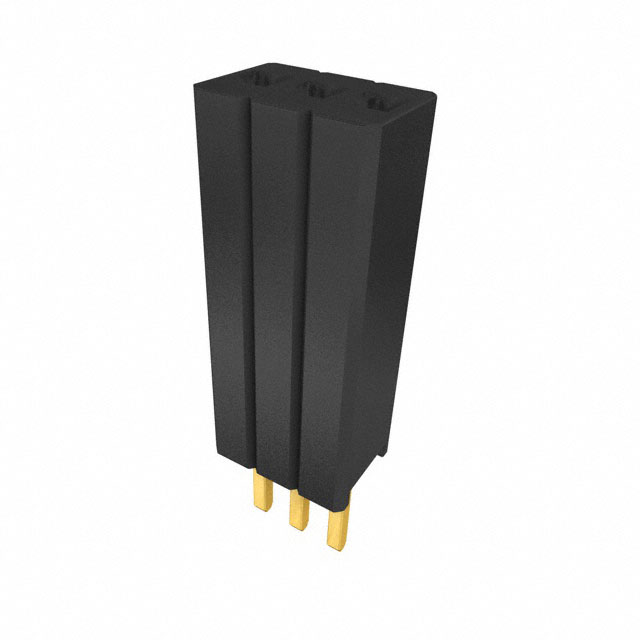

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M52-5010345 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M52-5010345 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M52-5010345 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 3POS T/H 1.27MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1617 pcs | ||||
|---|---|---|---|---|---|
| $0.079 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M52-5010345 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 3POS T/H 1.27MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 241628 pcs | Data sheet | M52-501xx45 DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Archer M52 | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 3 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Forked | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.110" (2.79mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Medical, Telecommunications |
