M50-4901045

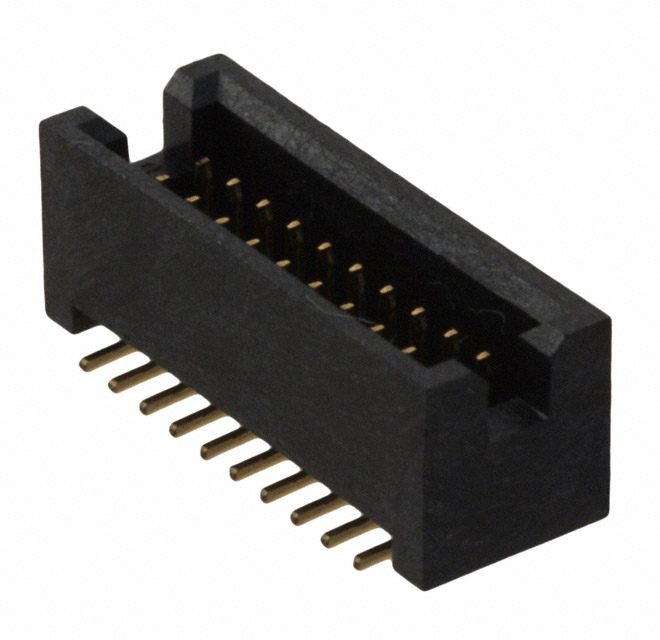

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-4901045 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-4901045 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-4901045 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 1.27MM SMD AU 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 38 pcs | 114 pcs | ||
|---|---|---|---|---|---|
| $1.21 | $1.063 | $0.967 | |||
| 532 pcs | 1026 pcs | 5016 pcs | |||
| $0.822 | $0.701 | $0.628 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-4901045 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM SMD AU 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51918 pcs | Data sheet | M50-490xx45 DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Archer M50 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-1410-5 M504901045 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.224" (5.69mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.050" (1.27mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
