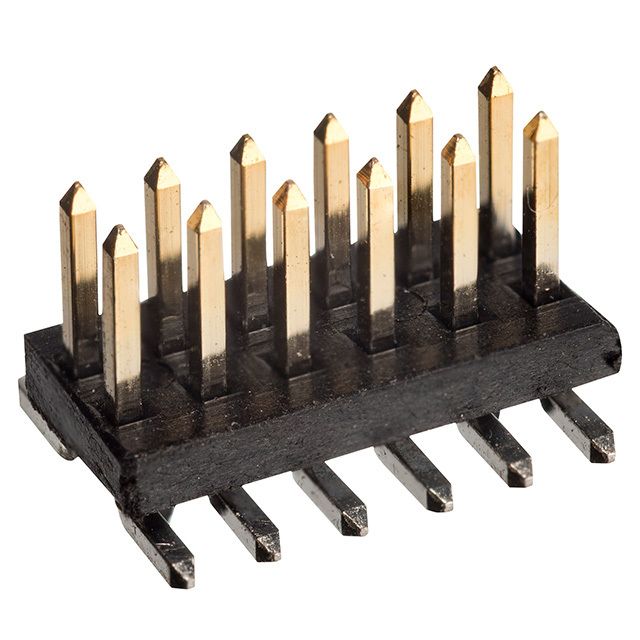

M50-3610642R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3610642R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3610642R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3610642R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 1.27MM SMD AU 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.596 | $0.542 | $0.465 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3610642R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM SMD AU 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65397 pcs | Data sheet | M50-361xx42R DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Archer M50 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 952-3091-1 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.039" (1.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 12 position 0.050" (1.27mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) | Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
