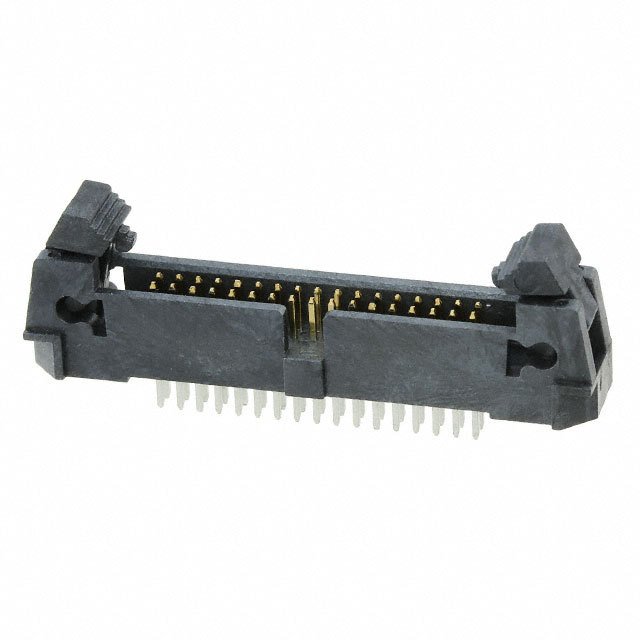

M50-3551742
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3551742 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3551742 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3551742 |
|---|---|
| Manufacturer | Harwin |
| Description | 1.27 IDC PCB HEADER 34 POSN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.203 | $1.155 | $0.962 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.818 | $0.698 | $0.626 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3551742 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1.27 IDC PCB HEADER 34 POSN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49644 pcs | Data sheet | M50,M52 Series Spec SheetArcher Series CatalogM50-355xx42 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Archer M50 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.351" (8.92mm) |
| Other Names | 952-2621 M50-3551742-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.6mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 34 position 0.050" (1.27mm) |
| Current Rating | 1.75A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
