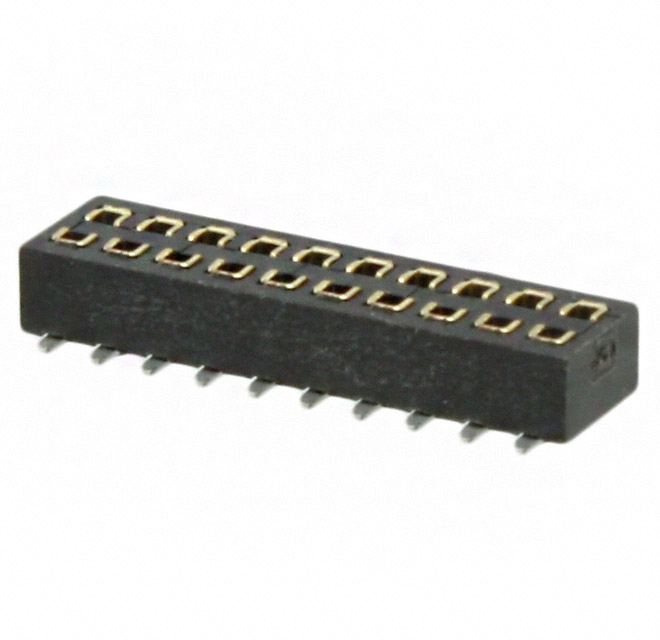

M50-3151042
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3151042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3151042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3151042 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 1.27MM SMD GOLD 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 46 pcs | 138 pcs | 506 pcs | 1012 pcs |
|---|---|---|---|---|---|
| $1.729 | $1.521 | $1.383 | $1.176 | $1.003 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3151042 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 1.27MM SMD GOLD 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35772 pcs | Data sheet | M50-315yyyy DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Archer M50 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 952-1374-5 M503151042 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.087" (2.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | General Purpose, Medical, Telecommunications |
