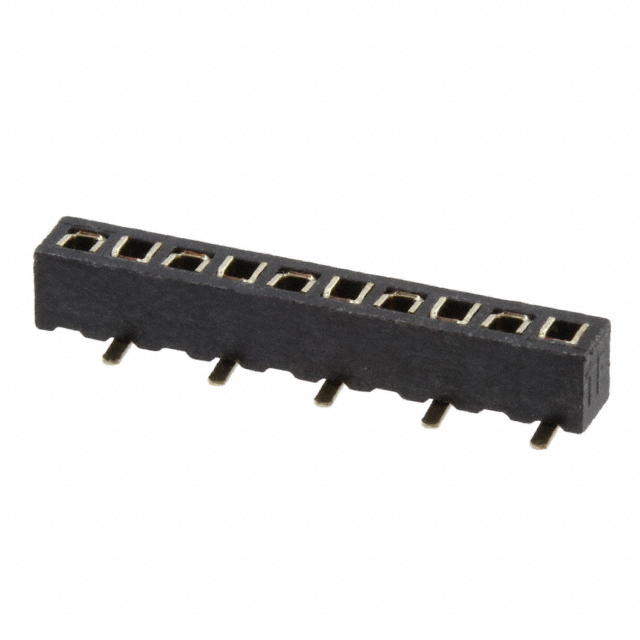

M50-3131045R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3131045R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3131045R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3131045R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 1.27MM SMT AU 10POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.603 | $0.547 | $0.469 | $0.391 | $0.335 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3131045R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 1.27MM SMT AU 10POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63072 pcs | Data sheet | M50,M52 Series Spec SheetArcher Series CatalogM50-313xx45x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC |
| Termination | Solder | Style | Board to Board |
| Series | Archer M50 | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Cut Tape (CT) |
| Other Names | 952-3924-1 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 3.1mm, 3.6mm, 3.8mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle, Bottom or Top Entry Connector Surface Mount |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | General Purpose, Medical, Telecommunications |
