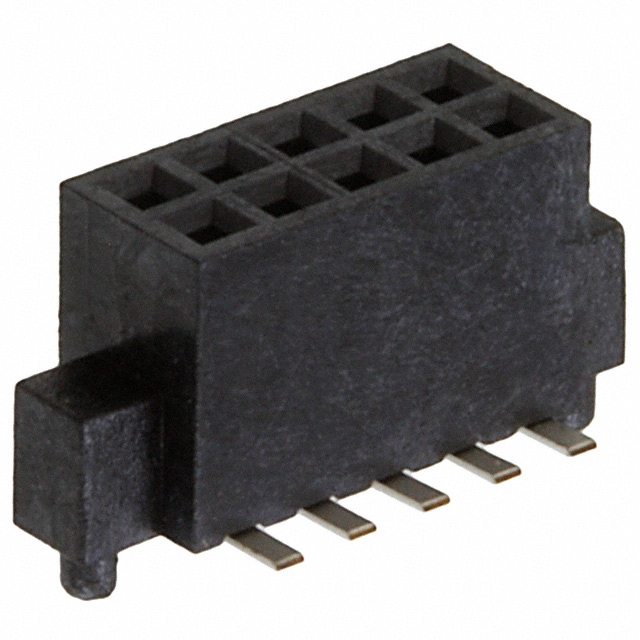

M50-3110542
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3110542 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3110542 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3110542 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 10POS 1.27MM SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 61 pcs | 122 pcs | 549 pcs | |
|---|---|---|---|---|---|
| $0.669 | $0.546 | $0.521 | $0.435 | ||
| 1037 pcs | 5002 pcs | 10004 pcs | |||
| $0.372 | $0.33 | $0.323 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3110542 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 10POS 1.27MM SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63377 pcs | Data sheet | M50-311xx42 DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Archer M50 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 952-2342 M503110542 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.5mm, 6.18mm, 9.47mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.169" (4.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Medical, Telecommunications |
