M50-3100545

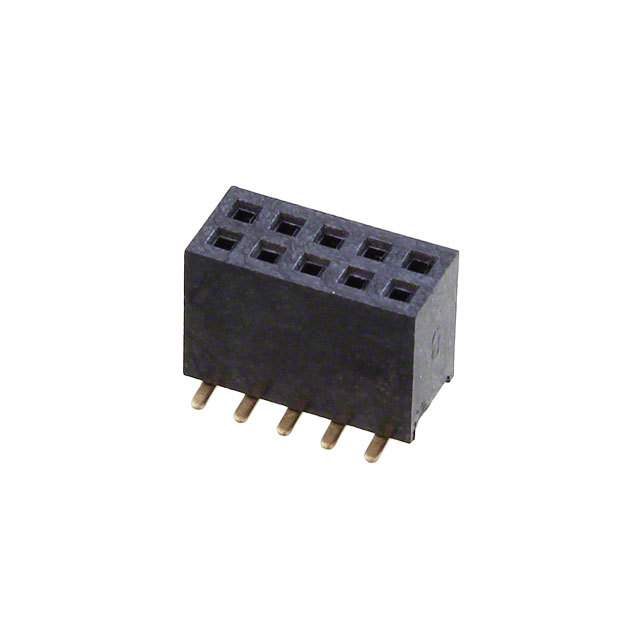

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3100545 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3100545 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3100545 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 10POS SMD 1.27MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 85 pcs | 170 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.682 | $0.556 | $0.531 | $0.442 | ||
| 1020 pcs | 5015 pcs | 10030 pcs | |||
| $0.379 | $0.336 | $0.329 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3100545 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 10POS SMD 1.27MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71256 pcs | Data sheet | M50-310 DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Archer M50 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 952-1798 M503100545 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.5mm, 6.18mm, 9.47mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Medical, Telecommunications |
