M50-3030342

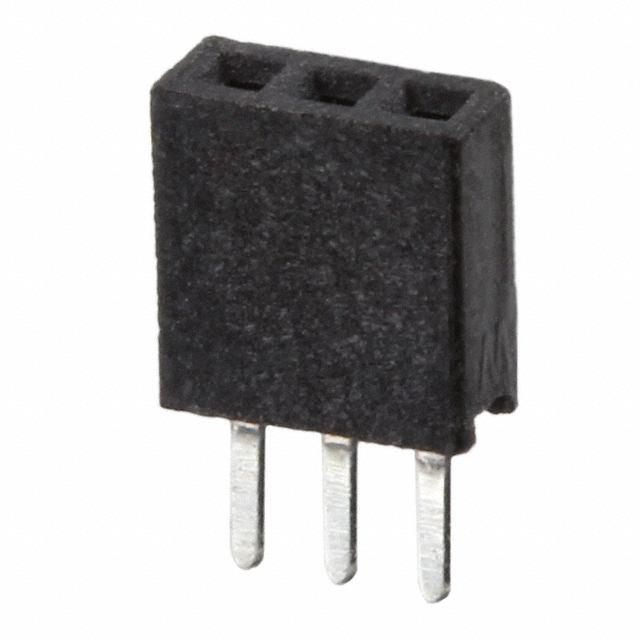

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M50-3030342 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3030342 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M50-3030342 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 1.27MM T/H AU 3POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 137 pcs | 548 pcs | |
|---|---|---|---|---|---|
| $0.214 | $0.199 | $0.153 | $0.133 | ||
| 1096 pcs | 5069 pcs | 10001 pcs | |||
| $0.11 | $0.096 | $0.09 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M50-3030342 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 1.27MM T/H AU 3POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 255031 pcs | Data sheet | M50-303xx42 DrawingM50,M52 Series Spec SheetArcher Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Archer M50 | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 952-3575 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.4mm, 6.08mm, 9.37mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Medical, Telecommunications |
