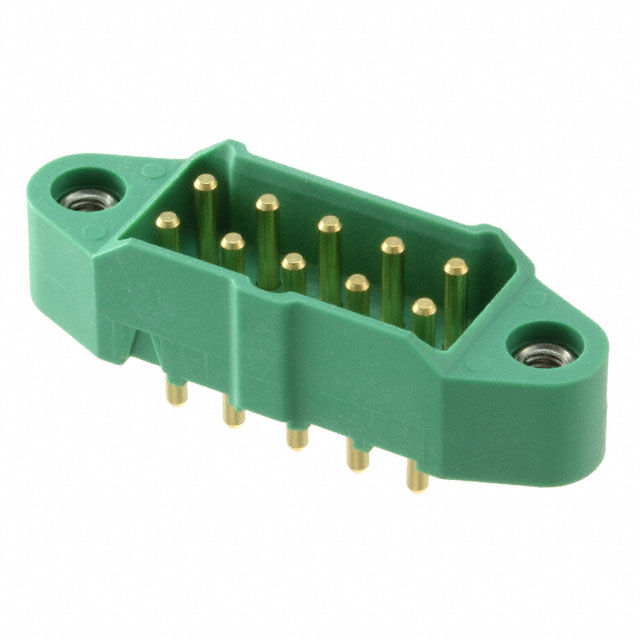

M300-MV31045M1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M300-MV31045M1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M300-MV31045M1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M300-MV31045M1 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 3MM VERT PCB 10POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.791 | $2.677 | $2.211 | $1.862 | $1.629 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M300-MV31045M1 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 3MM VERT PCB 10POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23304 pcs | Data sheet | M300-MVzzz45M1 Catalog PageM300 Series Data SheetM300-MV31045M1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC/DC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | M300 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-3085 | Operating Temperature | -65°C ~ 175°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.90mm, 14.10mm, 14.90mm, 19.75mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Green |
| Ingress Protection | - | Features | Mating Flange |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole 10 position 0.118" (3.00mm) |
| Current Rating | 10A | Contact Type | Male Pin, Power |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
