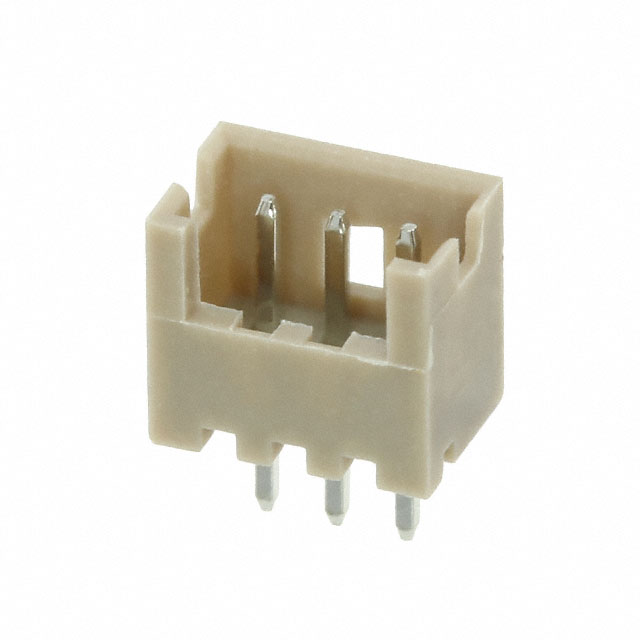

M30-6100346
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M30-6100346 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M30-6100346 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M30-6100346 |
|---|---|
| Manufacturer | Harwin |
| Description | 3 SIL PC TAIL PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 106 pcs | 530 pcs | |
|---|---|---|---|---|---|
| $0.385 | $0.339 | $0.293 | $0.239 | ||
| 1060 pcs | 5088 pcs | 10070 pcs | |||
| $0.213 | $0.186 | $0.177 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M30-6100346 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 3 SIL PC TAIL PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125685 pcs | Data sheet | M30 Series SpecM40, M30 Series CatalogM30-610 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | M30 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-2557 M30-6100346-ND |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.4mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.169" (4.30mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 3 position 0.049" (1.25mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.091" (2.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
