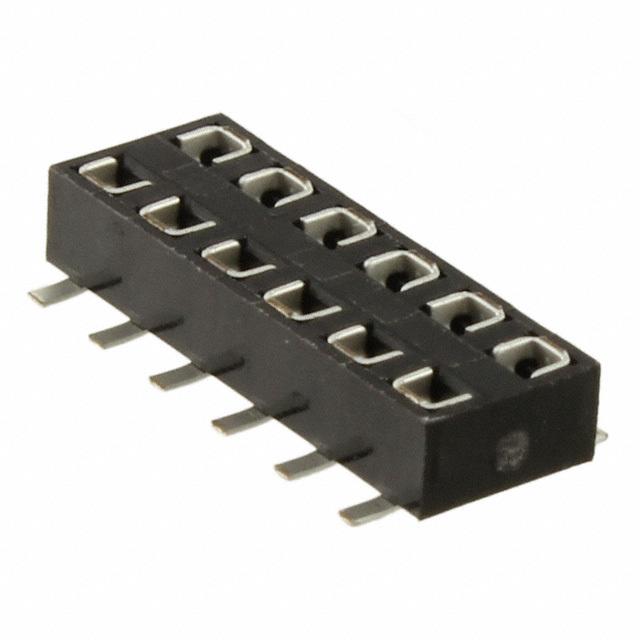

M22-6360646
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-6360646 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-6360646 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-6360646 |
|---|---|
| Manufacturer | Harwin |
| Description | 2X6POS DIL LOW PRO SMT SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.973 | $0.935 | $0.779 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.662 | $0.565 | $0.506 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-6360646 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2X6POS DIL LOW PRO SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70628 pcs | Data sheet | M22-636yyyy DrawingM22 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | M22 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-1930 M226360646 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 3.8mm, 4.8mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 12 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Tin |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | General Purpose, Industrial, Telecommunications |
