M22-5430605

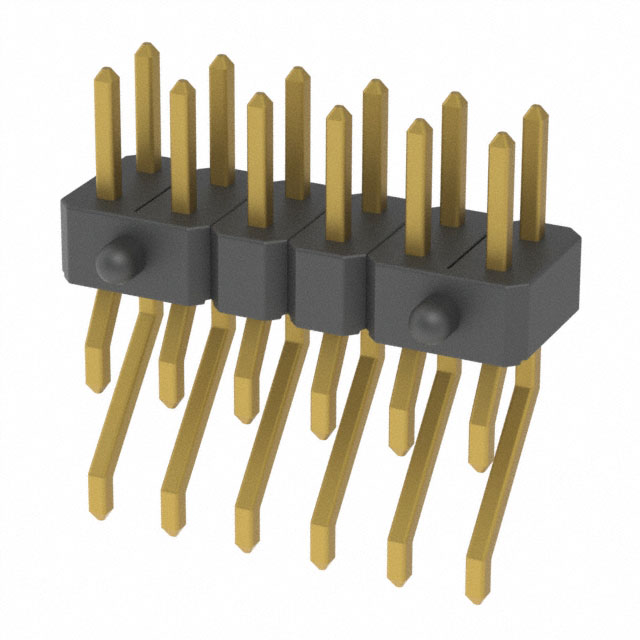

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-5430605 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-5430605 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-5430605 |
|---|---|
| Manufacturer | Harwin |
| Description | 6+6 DIL HORIZ SMT PIN HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2016 pcs | ||||
|---|---|---|---|---|---|
| $0.423 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-5430605 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 6+6 DIL HORIZ SMT PIN HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71330 pcs | Data sheet | M22 Series CatalogM22-543yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | M22 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.157" (4.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 12 position 0.079" (2.00mm) | Current Rating | 1.5A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.126" (3.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
