M22-2741205
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-2741205 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-2741205 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-2741205 |
|---|---|
| Manufacturer | Harwin |

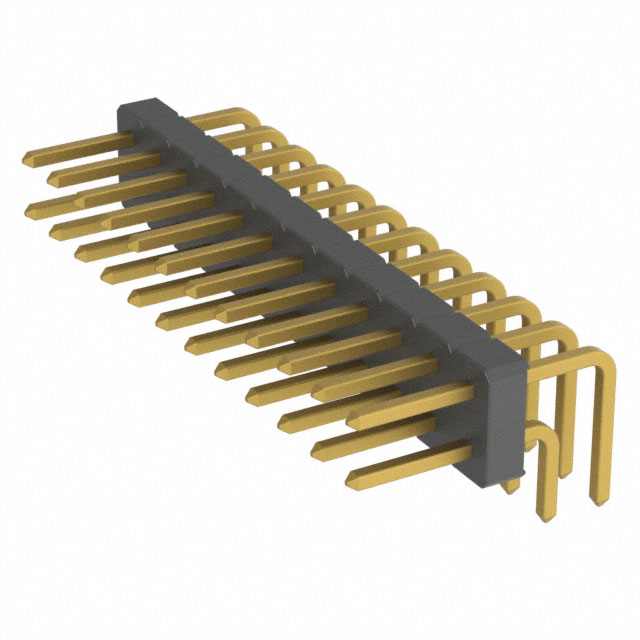

| Description | 12+12 WAY DIL HORIZ PIN HDR 2. |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1200 pcs | ||||
|---|---|---|---|---|---|
| $0.314 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-2741205 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 12+12 WAY DIL HORIZ PIN HDR 2. | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67451 pcs | Data sheet | M22 Series CatalogM22-274yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | M22 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 24 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.094" (2.40mm) | Contact Length - Mating | 0.165" (4.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
