M22-2514005

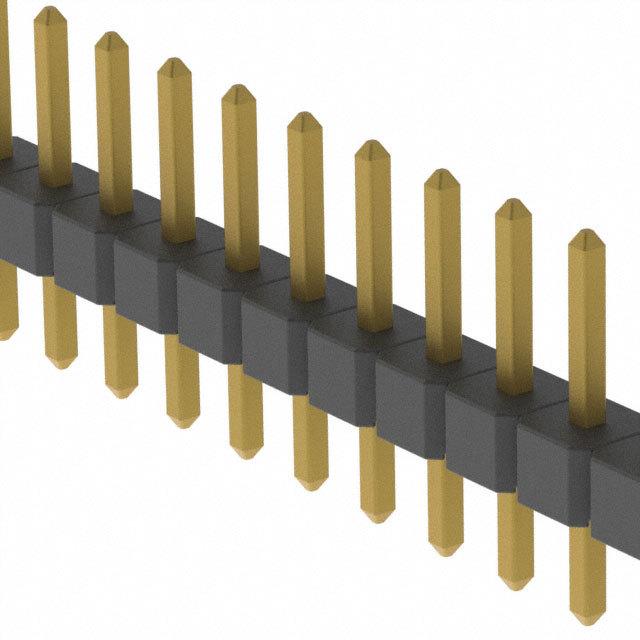

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-2514005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-2514005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-2514005 |
|---|---|
| Manufacturer | Harwin |
| Description | 40 SIL VERT HDR GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.442 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-2514005 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 40 SIL VERT HDR GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81902 pcs | Data sheet | M22 Series CatalogM22-251 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | M22 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.287" (7.30mm) |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.9mm, 8.6mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 40 position 0.079" (2.00mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.091" (2.30mm) |
| Contact Length - Mating | 0.138" (3.50mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
