Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > M22-2410846

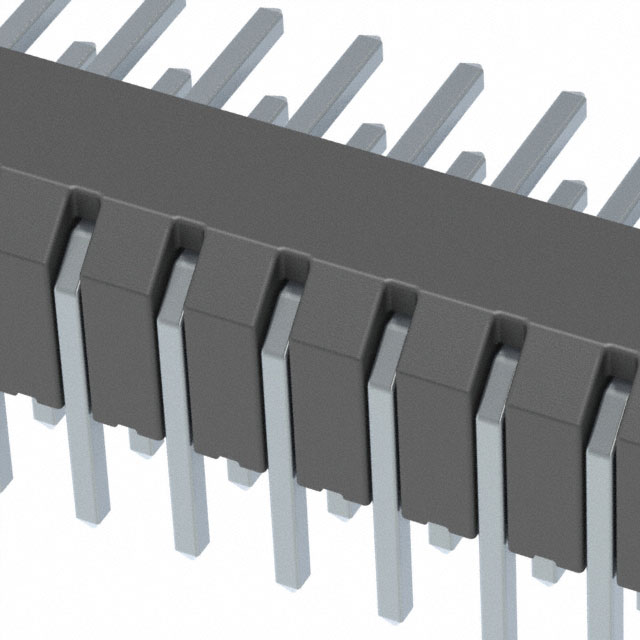

M22-2410846

M22-2410846
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-2410846 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number M22-2410846
Manufacturer Harwin
Description 8+8 WAY HORIZ PIN HEADER
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 91567 pcs
Reference Price
(In US Dollars)		1020 pcs
$0.238

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.238

Product parameter

Part Number M22-2410846 Manufacturer Harwin
Description 8+8 WAY HORIZ PIN HEADER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 91567 pcs Data sheet M22 Series Spec SheetM22-241zz46,42 Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Board or Cable
Shrouding Unshrouded Series M22
Row Spacing - Mating 0.079" (2.00mm) Pitch - Mating 0.079" (2.00mm)
Packaging Tube Overall Contact Length -
Operating Temperature -40°C ~ 105°C Number of Rows 2
Number of Positions Loaded All Number of Positions 16
Mounting Type Through Hole, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 7 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyamide (PA6T), Nylon 6T Insulation Height 0.169" (4.30mm)
Insulation Color Black Ingress Protection -
Features - Fastening Type Push-Pull
Detailed Description Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm) Current Rating 2A per Contact
Contact Type Male Pin Contact Shape Square
Contact Material Copper Alloy Contact Length - Post 0.110" (2.79mm)
Contact Length - Mating 0.157" (4.00mm) Contact Finish Thickness - Post -
Contact Finish Thickness - Mating - Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Header
Applications -
