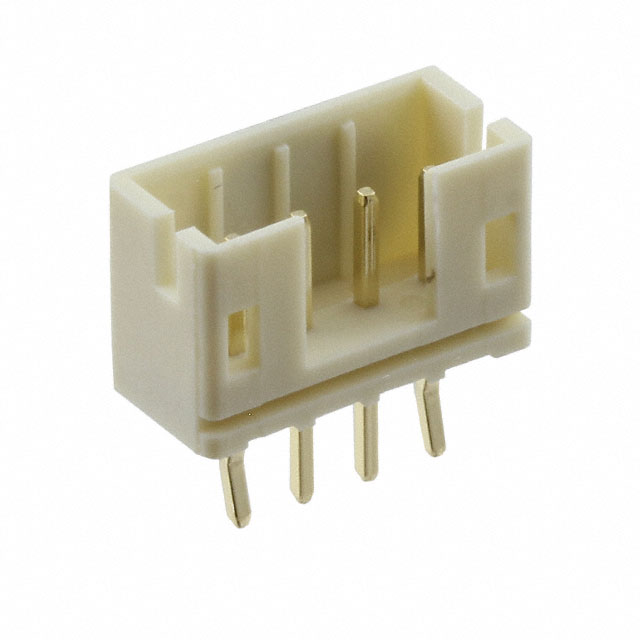

M22-2200445
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-2200445 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-2200445 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-2200445 |
|---|---|
| Manufacturer | Harwin |
| Description | 04 SIL VERT SHROUDED PIN HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.12 | $0.112 | $0.078 | $0.067 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.056 | $0.048 | $0.045 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-2200445 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 04 SIL VERT SHROUDED PIN HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 468730 pcs | Data sheet | M22 Series Spec SheetM22-220zzzz Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | M22 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 952-3488 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 8.05mm |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.240" (6.10mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 4 position 0.079" (2.00mm) | Current Rating | 2A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.134" (3.40mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
