M20-9770346
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-9770346 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-9770346 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-9770346 |
|---|---|
| Manufacturer | Harwin |

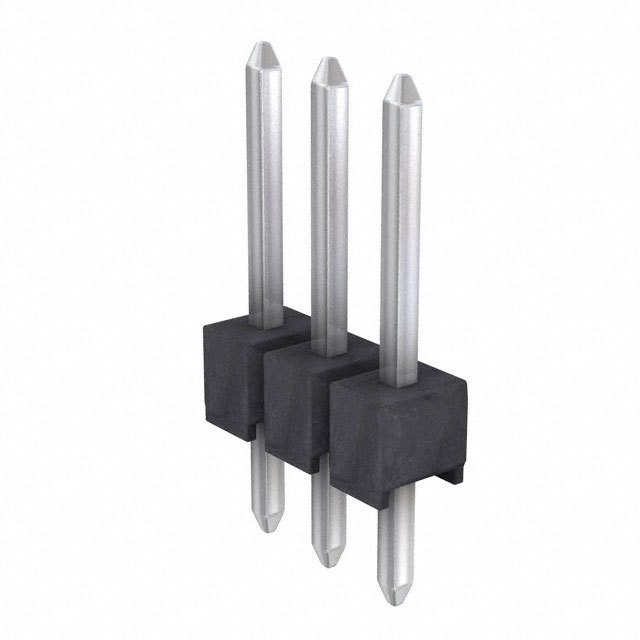

| Description | 03 SIL VERT PIN HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.054 | $0.051 | $0.032 | $0.026 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.023 | $0.02 | $0.019 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-9770346 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 03 SIL VERT PIN HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1320965 pcs | Data sheet | M20 Series Spec SheetM20-977 DrawingM20 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | M20 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.452" (11.48mm) |
| Other Names | 952-1777 M209770346 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 10.04mm, 10.64mm, 11.04mm, 16.54mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 3 position 0.100" (2.54mm) |
| Current Rating | 3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | 0.228" (5.80mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Cuttable | Applications | - |
