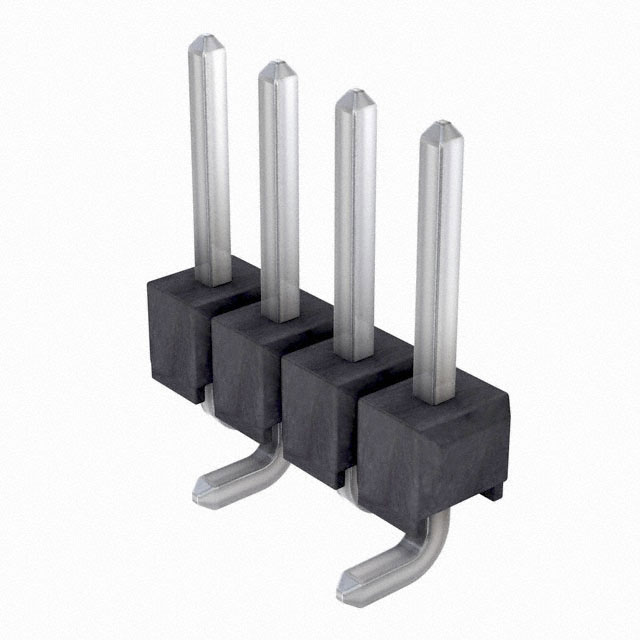

M20-8770446
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-8770446 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-8770446 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-8770446 |
|---|---|
| Manufacturer | Harwin |
| Description | 04 SIL VERT SMT HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.051 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-8770446 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 04 SIL VERT SMT HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 435565 pcs | Data sheet | M20-877yyyy DrawingM20 Series Spec SheetM20 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | M20 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.63mm, 12.23mm, 12.63mm, 18.13mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 4 position 0.100" (2.54mm) | Current Rating | 3A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.228" (5.80mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header, Cuttable |
| Applications | - |
