M20-8760242R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-8760242R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-8760242R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-8760242R |
|---|---|
| Manufacturer | Harwin |

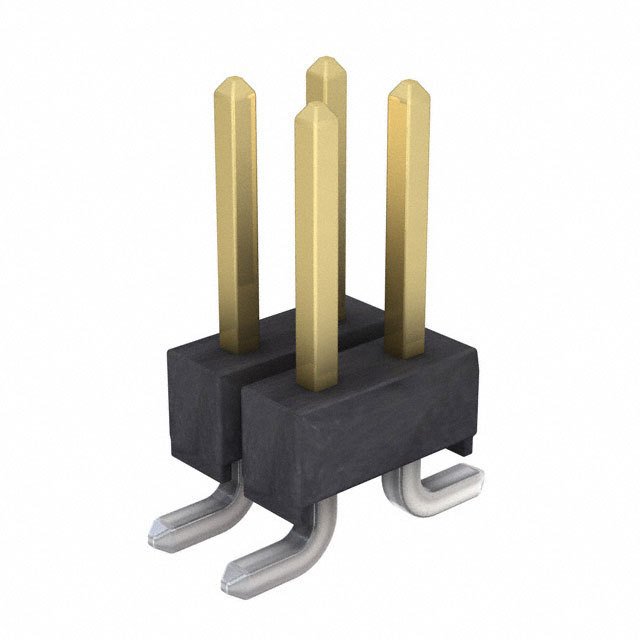

| Description | 02+02 DIL VERT SMT HDR 350/RL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.277 | $0.26 | $0.199 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-8760242R | Manufacturer | Harwin |
|---|---|---|---|
| Description | 02+02 DIL VERT SMT HDR 350/RL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96741 pcs | Data sheet | M20-876yyyyR DrawingM20 Series Spec SheetM20 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | M20 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 952-3255-1 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.53mm, 12.23mm, 12.63mm, 18.13mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 4 position 0.100" (2.54mm) | Current Rating | 3A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.228" (5.80mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
