M20-7890446

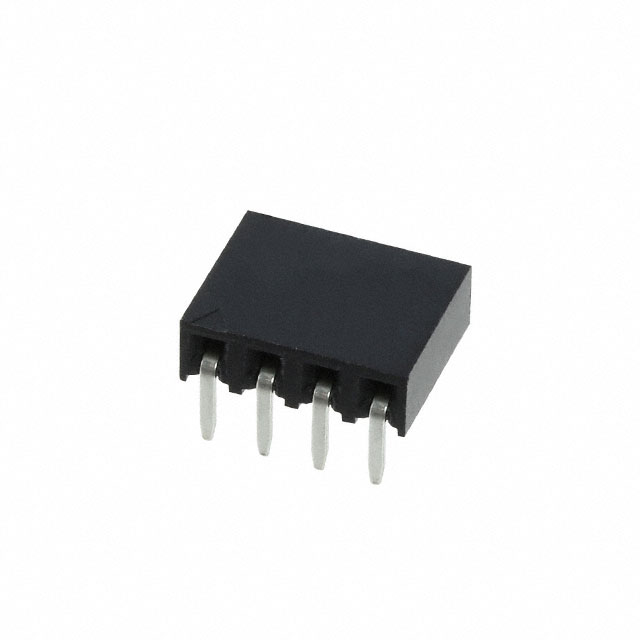

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-7890446 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-7890446 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-7890446 |
|---|---|
| Manufacturer | Harwin |
| Description | 04-WAY SIL HORIZ SOCKET L/FREE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 58 pcs | 116 pcs | 522 pcs | |
|---|---|---|---|---|---|
| $0.366 | $0.289 | $0.276 | $0.226 | ||
| 1044 pcs | 5046 pcs | 10034 pcs | |||
| $0.201 | $0.176 | $0.167 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-7890446 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 04-WAY SIL HORIZ SOCKET L/FREE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129457 pcs | Data sheet | M20-789yyyy DrawingM20 Series Spec SheetM20 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | M20 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 952-2840 M20-7890446-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Telecommunications |
