M20-7830646

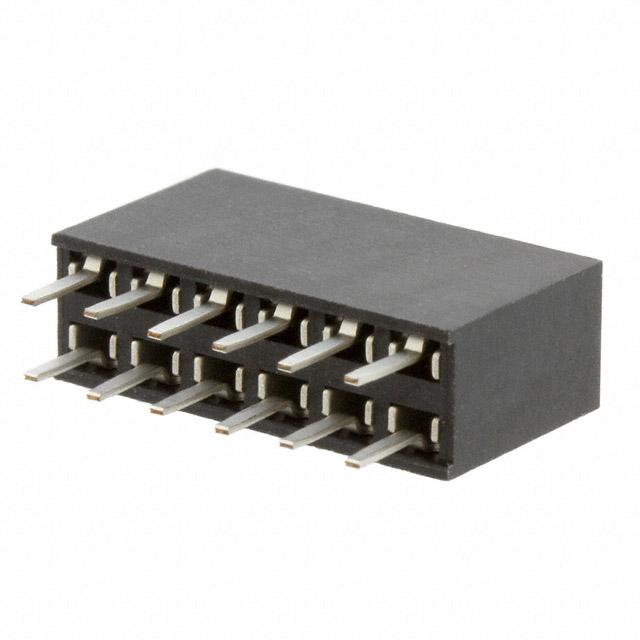

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-7830646 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-7830646 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-7830646 |
|---|---|
| Manufacturer | Harwin |
| Description | 2.54MM PITCH DIL VERT PC TAIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 36 pcs | 108 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $0.524 | $0.445 | $0.406 | $0.338 | ||
| 1008 pcs | 5004 pcs | 10008 pcs | |||
| $0.29 | $0.257 | $0.251 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-7830646 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2.54MM PITCH DIL VERT PC TAIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84252 pcs | Data sheet | M20 Series Spec SheetM20-783 DrawingM20 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | M20 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 952-1806 M20-7830646-ND M207830646 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.04mm, 12.63mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 12 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Telecommunications |
