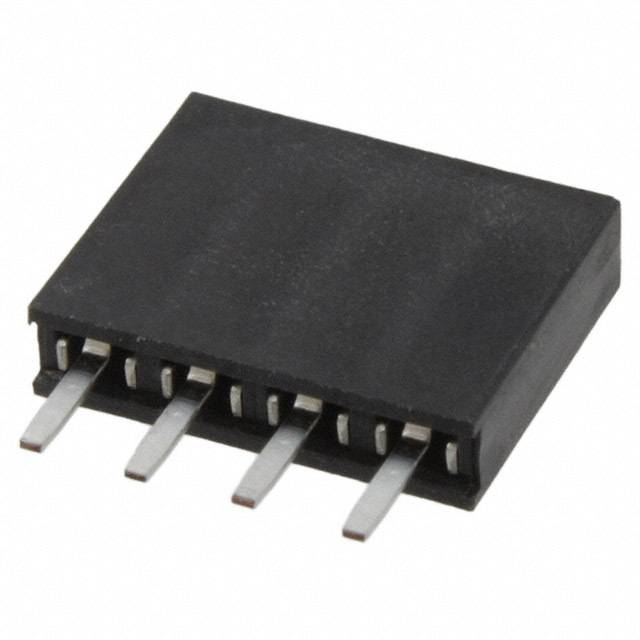

M20-7820442
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-7820442 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-7820442 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-7820442 |
|---|---|
| Manufacturer | Harwin |
| Description | 04-WAY SIL VERT SOCKET L/FREE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 54 pcs | 108 pcs | 540 pcs | |
|---|---|---|---|---|---|
| $0.29 | $0.231 | $0.221 | $0.181 | ||
| 1026 pcs | 5022 pcs | 10044 pcs | |||
| $0.161 | $0.141 | $0.133 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-7820442 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 04-WAY SIL VERT SOCKET L/FREE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159096 pcs | Data sheet | M20-782 DrawingM20 Series Spec SheetM20 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | M20 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 952-1791 M207820442 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.04mm, 12.63mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Telecommunications |
