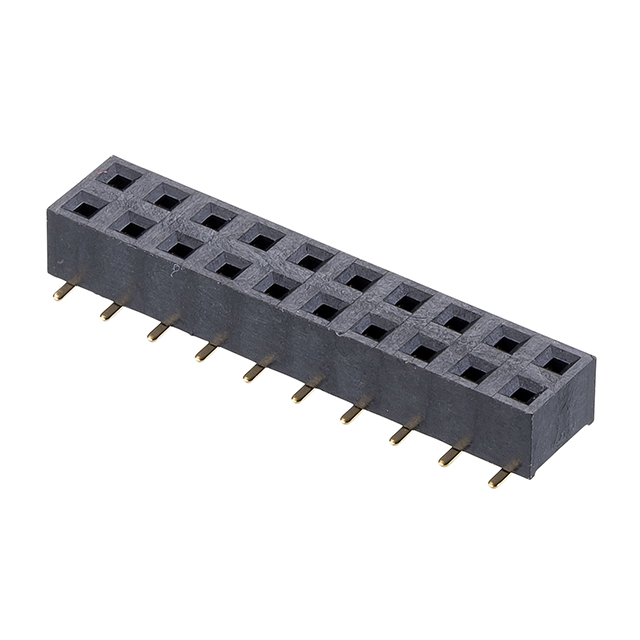

M20-7811045
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M20-7811045 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M20-7811045 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M20-7811045 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 2.54" SMD DUAL 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 110 pcs | ||
|---|---|---|---|---|---|
| $0.928 | $0.841 | $0.721 | |||
| 506 pcs | 1012 pcs | 5016 pcs | |||
| $0.601 | $0.515 | $0.457 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M20-7811045 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 2.54" SMD DUAL 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83646 pcs | Data sheet | M-20-781 DrawingM20 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | M20 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 952-3215 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Insulation Height | 0.140" (3.56mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 5.90µin (0.150µm) |
| Contact Finish Thickness - Mating | 0.59µin (0.015µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
