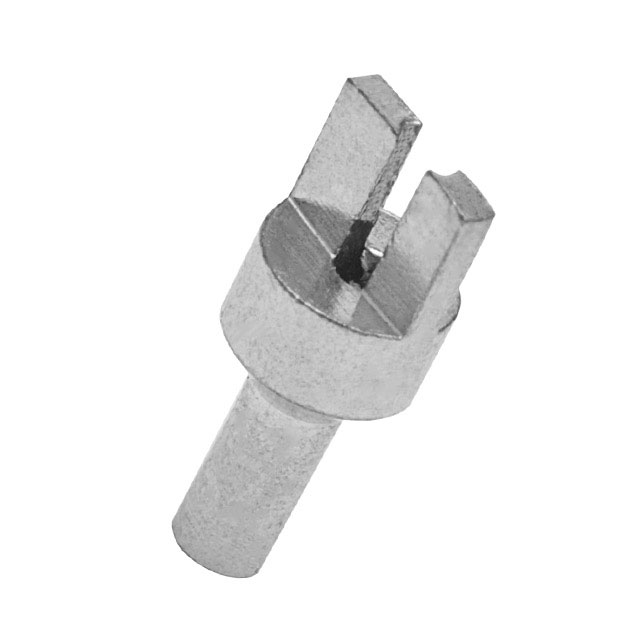

H9066-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H9066-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H9066-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H9066-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET HOLLOW L=4.75MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H9066-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=4.75MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5434 pcs | Data sheet | H9066(67)-01 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End, Fork, Hollow | Staking Side OD | 0.059" ~ 0.060" (1.50mm ~ 1.52mm) |
| Staking Side ID | 0.042" ~ 0.043" (1.07mm ~ 1.09mm) | Series | - |
| Number of Turrets | Single | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.060" ~ 0.063" (1.52mm ~ 1.60mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Length - Overall | 0.281" (7.14mm) |
| Length - Below Flange | 0.094" (2.39mm) | Length - Above Board | 0.187" (4.75mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | - | Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.187" (4.75mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
