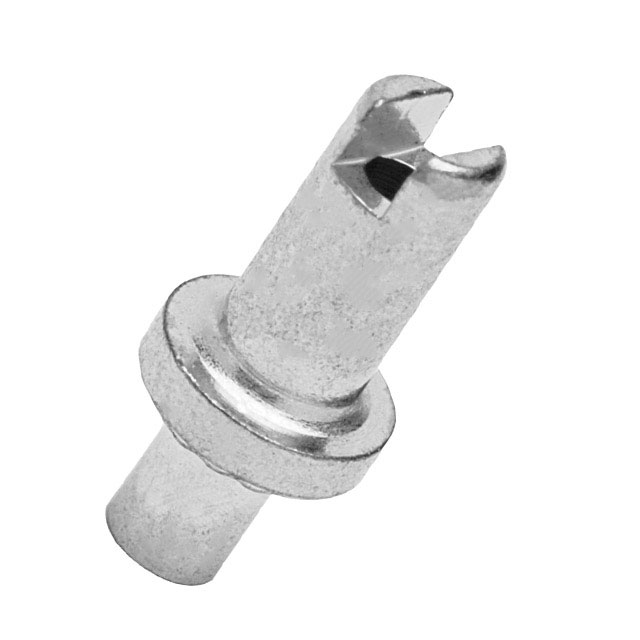

H3070-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3070-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H3070-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H3070-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET HOLLOW L=6.25-6.63MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 12000 pcs | ||||
|---|---|---|---|---|---|
| $0.092 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H3070-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=6.25-6.63MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 227529 pcs | Data sheet | H2475-01 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End, Fork, Hollow | Staking Side OD | 0.076" ~ 0.079" (1.93mm ~ 2.01mm) |
| Staking Side ID | - | Series | - |
| Number of Turrets | Single | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.080" ~ 0.083" (2.03mm ~ 2.11mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 7 Weeks |
| Length - Overall | 0.340" ~ 0.360" (8.64mm ~ 9.15mm) | Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Above Board | 0.246" ~ 0.261" (6.25mm ~ 6.63mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.153" ~ 0.159" (3.88mm ~ 4.04mm) | Diameter - Turret Head | - |
| Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.246" ~ 0.261" (6.25mm ~ 6.63mm) Tin | Contact Material | Brass Alloy |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.063" (1.60mm) |
