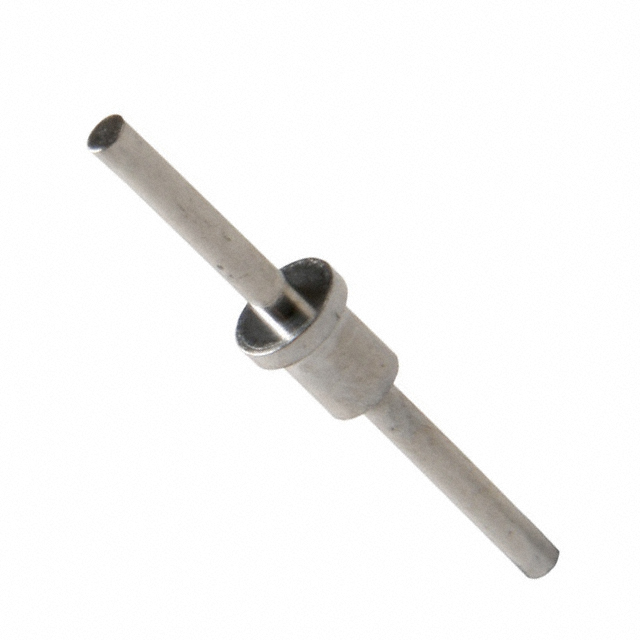

H2101-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2101-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2101-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2101-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PC PIN CIRC 0.036DIA TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.15 | $0.141 | $0.121 | $0.102 | $0.098 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.088 | $0.084 | $0.07 | $0.064 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2101-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.036DIA TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 316189 pcs | Data sheet | PCB Hardware CatalogH21(01-03)-01 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Double End |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.036" (0.91mm) Dia | Packaging | Bulk |
| Other Names | 952-1433 H210101 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.070" ~ 0.074" (1.78mm ~ 1.87mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.563" (14.30mm) | Length - Below Flange | 0.324" (8.23mm) |
| Length - Above Flange | 0.219" (5.56mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.094" (2.39mm) | Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.036" (0.91mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
