G125-MV21205L2R

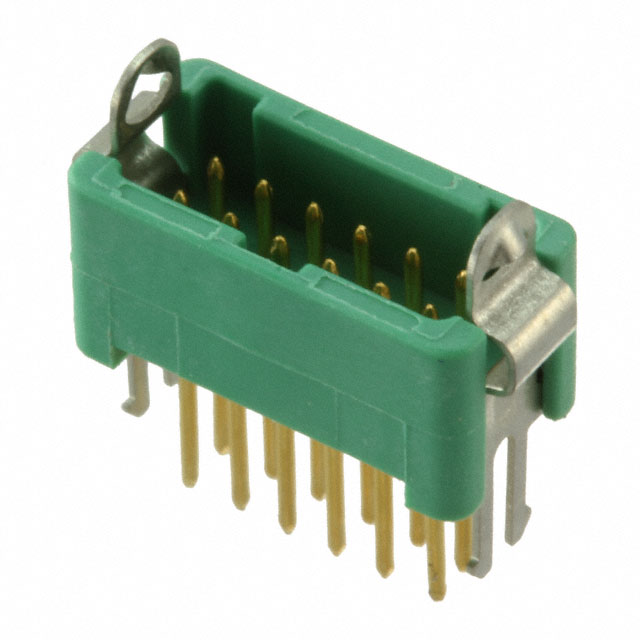

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G125-MV21205L2R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy G125-MV21205L2R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | G125-MV21205L2R |
|---|---|
| Manufacturer | Harwin |
| Description | 1.25MM M HSG 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $1.451 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | G125-MV21205L2R | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1.25MM M HSG 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25092 pcs | Data sheet | G125 Spec SheetG125-MVyyy05Lyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Gecko |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Operating Temperature | -65°C ~ 150°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.25mm, 7.35mm, 7.7mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free | Insulation Height | 0.193" (4.90mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | Board Lock, Pick and Place | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole 12 position 0.049" (1.25mm) | Current Rating | 2A per Contact |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.177" (4.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
