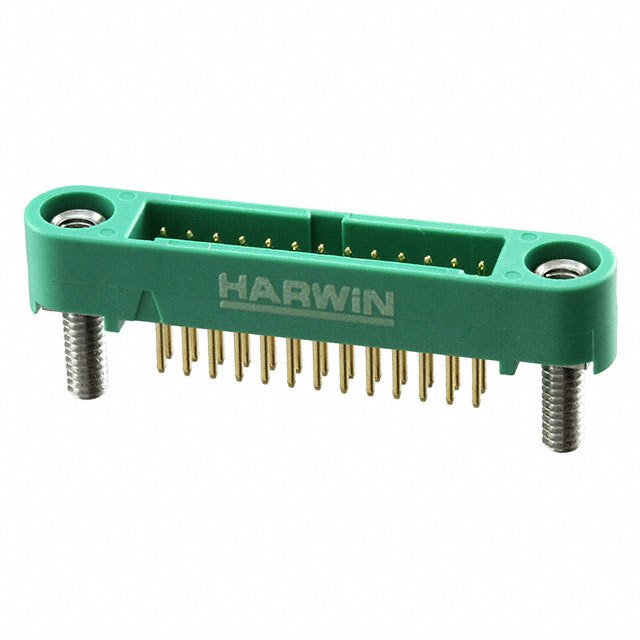

G125-MV12605M2P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G125-MV12605M2P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy G125-MV12605M2P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | G125-MV12605M2P |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 1.25MM VERT PCB 26POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.626 | $3.469 | $2.917 | $2.444 | $2.16 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | G125-MV12605M2P | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.25MM VERT PCB 26POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17864 pcs | Data sheet | G125 Spec SheetG125-MVyyyM2y DrawingGecko Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 450V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Gecko SL |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 952-3673 | Operating Temperature | -65°C ~ 150°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.35mm, 7.45mm, 7.8mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Insulation Height | 0.193" (4.90mm) | Insulation Color | Green |
| Ingress Protection | - | Features | Mating Flange, Mounting Flange, Pick and Place |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole 26 position 0.049" (1.25mm) |
| Current Rating | 2A per Contact | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
