G125-MS11605L3P

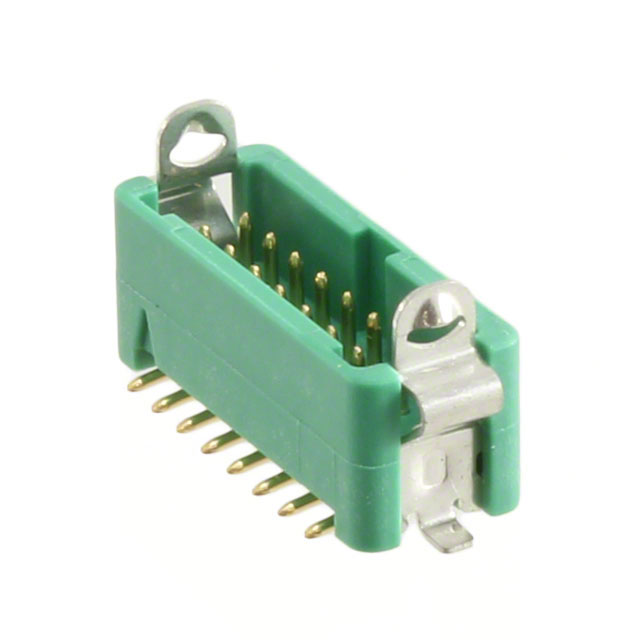

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G125-MS11605L3P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy G125-MS11605L3P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | G125-MS11605L3P |
|---|---|
| Manufacturer | Harwin |
| Description | 1.25MM M VERT SMT 2X8 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.66 | $2.55 | $2.107 | $1.774 | $1.552 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | G125-MS11605L3P | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1.25MM M VERT SMT 2X8 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21276 pcs | Data sheet | G125-MS1xx05L3x DrawingG125 Spec SheetGecko Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Gecko |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Strip | Overall Contact Length | - |
| Other Names | 952-2445 G125-MS11605L3P-ND |
Operating Temperature | -65°C ~ 150°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.35mm, 7.45mm, 7.8mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Insulation Height | 0.193" (4.90mm) | Insulation Color | Green |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount 16 position 0.049" (1.25mm) |
| Current Rating | 2A per Contact | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
