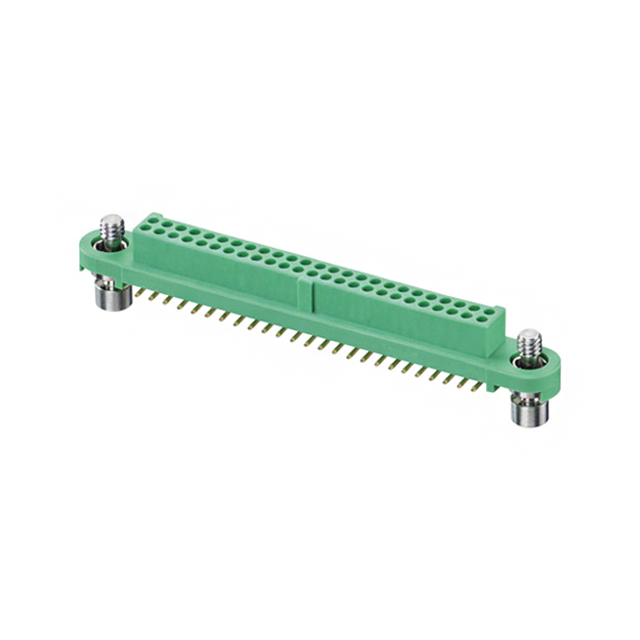

G125-FS15005F1P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G125-FS15005F1P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy G125-FS15005F1P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | G125-FS15005F1P |
|---|---|
| Manufacturer | Harwin |
| Description | CONN FHDR 1.25MM VERT SMT 50POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $20.074 | $18.894 | $16.178 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | G125-FS15005F1P | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN FHDR 1.25MM VERT SMT 50POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2123 pcs | Data sheet | G125 Spec SheetGecko CatalogG125-FS1zz05F1z Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Gecko SL | Row Spacing - Mating | 0.049" (1.25mm) |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Bulk |
| Other Names | 952-3671 | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Insulation Height | 0.207" (5.25mm) | Insulation Color | Green |
| Ingress Protection | - | Features | Jackscrews, Pick and Place, Polarizing Key |
| Fastening Type | Screw Lock | Detailed Description | 50 Position Receptacle Connector Surface Mount |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose |
