Home > Products > Connectors, Interconnects > Shunts, Jumpers > D3080-05

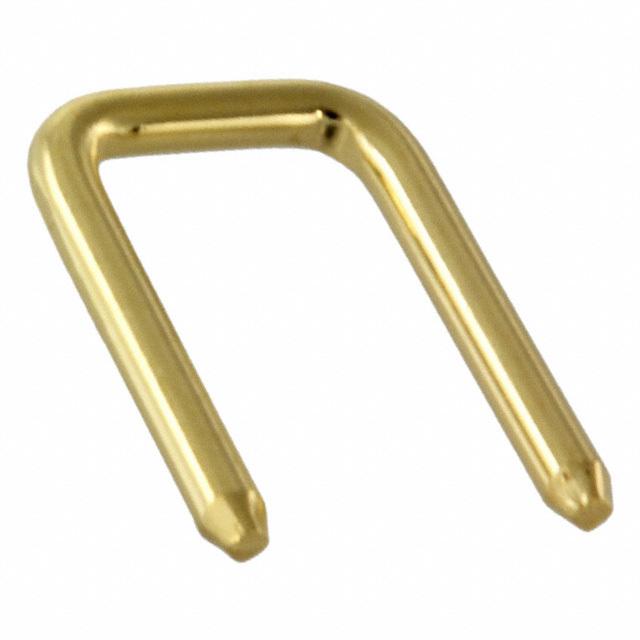

D3080-05

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3080-05 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D3080-05
Manufacturer	Harwin
Description	1MM UNINSULATED SHORTING PLUG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 372197 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.127	$0.119	$0.102	$0.086	$0.083
	$0.075	$0.071	$0.059	$0.054

Product parameter
Data sheet

Product parameter

Part Number	D3080-05	Manufacturer	Harwin
Description	1MM UNINSULATED SHORTING PLUG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	372197 pcs	Data sheet	PCB Hardware Catalog D3080-xx Drawing
Category	Connectors, Interconnects	Type	Non-Insulated
Series	D308	Pitch	0.200" (5.08mm)
Packaging	Bulk	Other Names	952-1872 D308005
Number of Positions or Pins (Grid)	2 (1 x 2)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.359" (9.13mm)	Gender	Male Pins
Detailed Description	2 (1 x 2) Position Shunt Connector Non-Insulated 0.200" (5.08mm) Gold	Contact Finish Thickness	Flash
Contact Finish	Gold	Color	-
