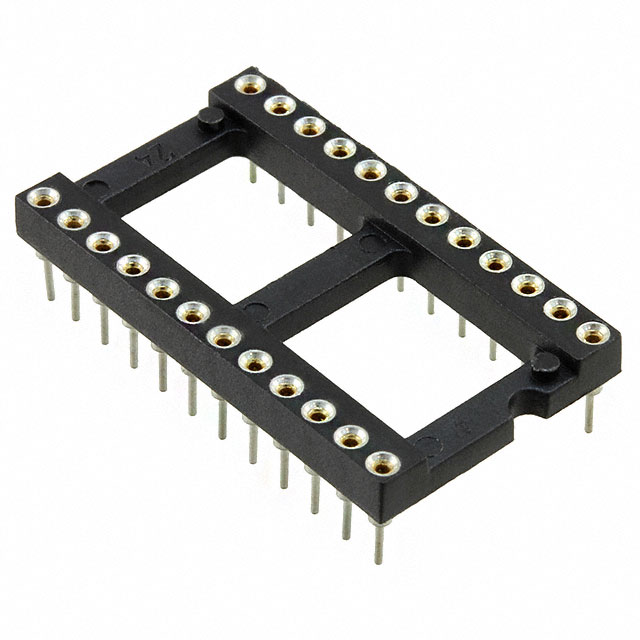

D2824-42
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2824-42 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2824-42 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2824-42 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN IC DIP SOCKET 24POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 34 pcs | 51 pcs | 102 pcs |
|---|---|---|---|---|---|
| $0.675 | $0.612 | $0.574 | $0.549 | $0.524 | |
| 255 pcs | 510 pcs | 1003 pcs | 2516 pcs | ||
| $0.474 | $0.437 | $0.374 | $0.349 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2824-42 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 24POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59305 pcs | Data sheet | D28xxx-42 DrawingPC Sockets Catalog |
| Category | Connectors, Interconnects | Type | DIP, 0.6" (15.24mm) Row Spacing |
| Termination Post Length | 0.126" (3.20mm) | Termination | Solder |
| Series | D2 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 952-2214 D282442 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 24 (2 x 12) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Features | Open Frame |
| Current Rating | 1A | Contact Resistance | 10 mOhm |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
