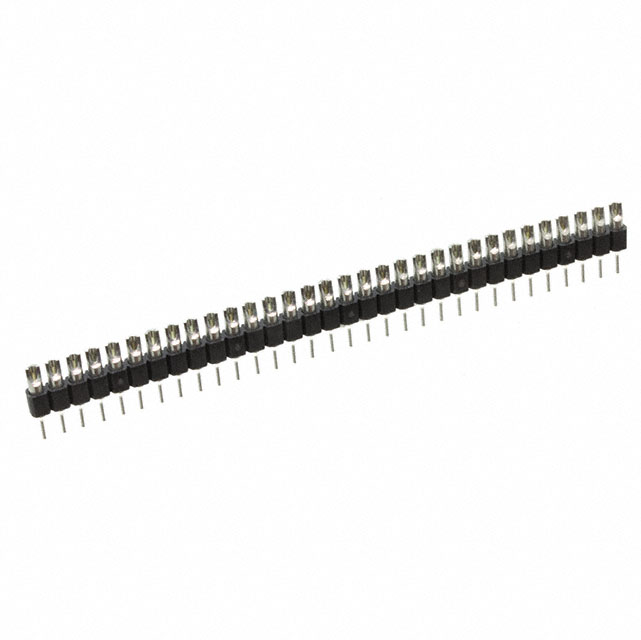

D01-9933246
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D01-9933246 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D01-9933246 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D01-9933246 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN SOCKET SIP 32POS TIN |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.63 | $2.519 | $2.081 | $1.752 | $1.533 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | D01-9933246 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN SOCKET SIP 32POS TIN | Lead Free Status / RoHS Status | |
| Quantity Available | 25547 pcs | Data sheet | D01-99332xx DrawingPC Sockets Catalog |
| Category | Connectors, Interconnects | Type | SIP |
| Termination Post Length | 0.121" (3.08mm) | Termination | Solder Cup |
| Series | D01-993 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 952-3900 D01-9933246-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 32 (1 x 32) | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Features | - |
| Current Rating | 1.5A | Contact Resistance | 23 mOhm |
| Contact Material - Post | Brass | Contact Material - Mating | Brass |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
