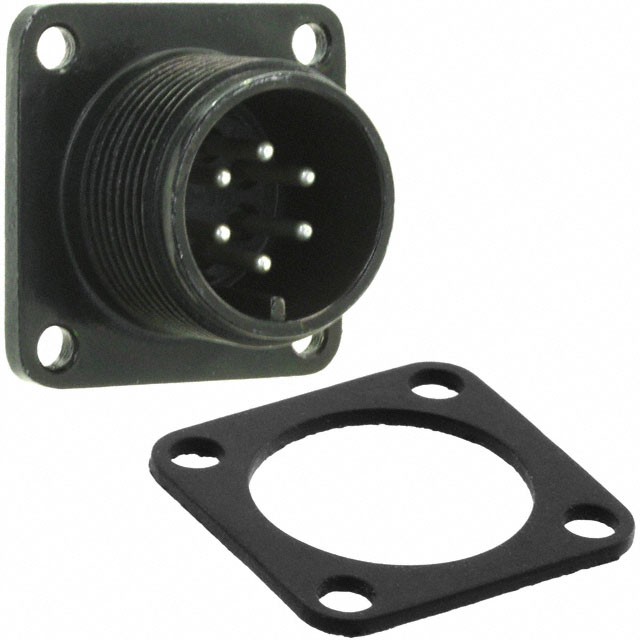

C90-3102R14S-6P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy C90-3102R14S-6P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy C90-3102R14S-6P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | C90-3102R14S-6P |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT MALE 6POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.484 | $3.334 | $3.031 | $2.88 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.804 | $2.501 | $2.349 | $2.076 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | C90-3102R14S-6P | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT MALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15584 pcs | Data sheet | C90 Circular CatalogC90-3102RxxSx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC, 250VDC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 14S-6 |
| Shell Material | Aluminum Alloy | Shell Finish | Black Zinc Cobalt Alloy |
| Series | C90 | Packaging | Bulk |
| Other Names | 952-1636 C903102R14S6P |
Orientation | Keyed |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 6 (Power) |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Rubber | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 6 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 13A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 0.745" (18.92mm) |
| Backshell Material, Plating | - | Applications | Automotive, Industrial |
