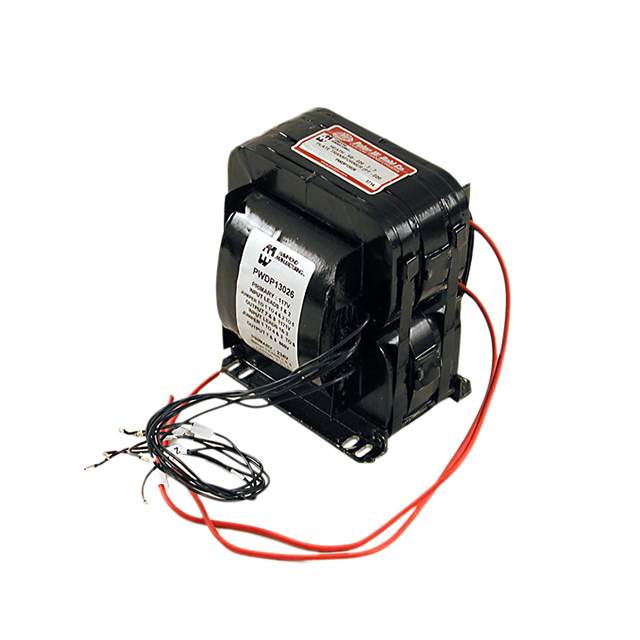

PWDP13026
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PWDP13026 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PWDP13026 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PWDP13026 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | HEATH SB-220 -3-7 PLATE TRNSFRMR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $142.242 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PWDP13026 | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | HEATH SB-220 -3-7 PLATE TRNSFRMR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 227 pcs | Data sheet | PWDP13026 Drawing |
| Category | Transformers | Weight | - |
| Voltage - Secondary (Full Load) | 1171V, 860V | Voltage - Primary | 120V, 240V |
| Voltage - Isolation | - | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 127.00mm L x 133.35mm W |
| Series | Peter W. Dahl Design | Secondary Winding(s) | Single |
| Primary Winding(s) | Dual, Multiple Taps | Power - Max | - |
| Other Names | Q8683236 Q9308310 Q9414741 |
Mounting Type | Chassis Mount |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 158.75mm | Current - Output (Max) | 1.3A |
| Center Tap | No |
