PWDP13006

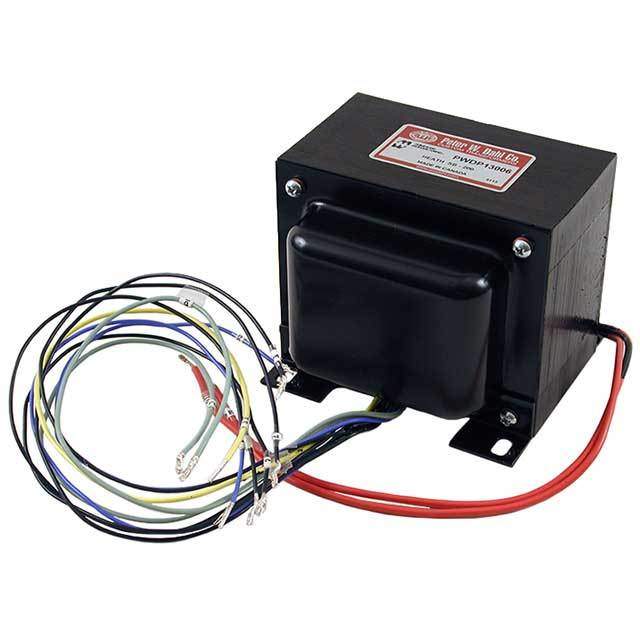

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PWDP13006 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PWDP13006 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PWDP13006 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | HEATH SB-200 TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $101.25 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PWDP13006 | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | HEATH SB-200 TRANSFORMER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 326 pcs | Data sheet | PWDP13006 Drawing |
| Category | Transformers | Weight | - |
| Voltage - Secondary (Full Load) | 800V, 120V, 6.3V | Voltage - Primary | 120V, 240V |
| Voltage - Isolation | - | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 133.35mm L x 132.21mm W |
| Series | Peter W. Dahl Design | Secondary Winding(s) | Triple |
| Primary Winding(s) | Dual | Power - Max | - |
| Mounting Type | Chassis Mount | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 111.13mm |
| Current - Output (Max) | 500mA | Center Tap | Yes |
