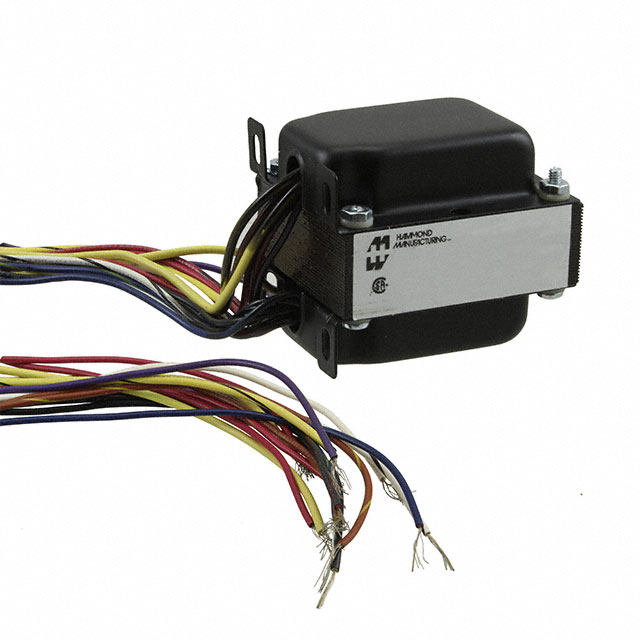

363AX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 363AX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 363AX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 363AX |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | XFRMR LAMINATED 32VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $26.682 | $25.791 | $24.012 | $22.234 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 363AX | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | XFRMR LAMINATED 32VA CHAS MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1583 pcs | Data sheet | 300 Series363AX Drawing |
| Category | Transformers | Weight | 40 lbs (18.1kg) |
| Voltage - Secondary (Full Load) | 200V, 5V | Voltage - Primary | 100V, 110V, 120V, 200V, 220V, 240V |
| Voltage - Isolation | 2000Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 69.85mm L x 63.50mm W |
| Series | 300 | Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual, Multiple Taps | Power - Max | 32 VA |
| Other Names | 363AX-ND HM5074 |
Mounting Type | Chassis Mount |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 77.72mm | Current - Output (Max) | 115mA, 2A |
| Center Tap | Yes |
